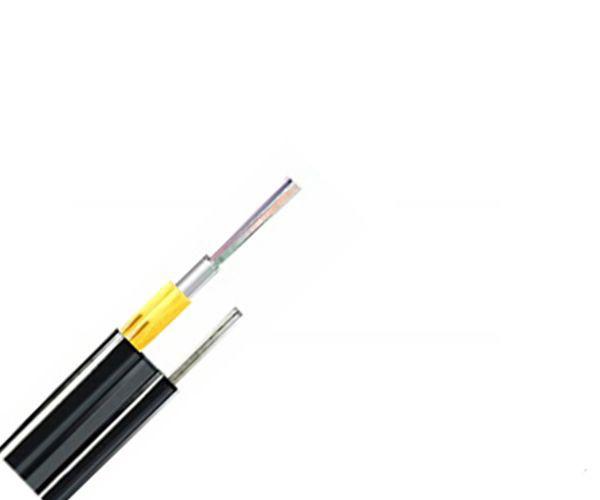

Figure 8 Fiber Optical Cable GYTC8Y High Tensile Strength For CATV

  • 1
  • 2

Place of Origin : Guangdong

Brand Name : CY

Certification : SGS,RoHS

MOQ : 2000 Meter/Meters

Packaging Details : Pe packgae

Delivery Time : in 3-5 days

Payment Terms : L/C,T/T,Western Union

Supply Ability : 2000 Piece/Pieces per Day

Model No. : GYTC8Y

Type : Coaxial

Application : Outdoor Aerial

Cable Structure : Tight buffer Self-support

Fiber options : G657A1, G657A2, G652D

Contact Now

Figure 8 Fiber Optical Cable GYTC8Y High Tensile Strength For CATV

Features:

  1. Central loose tubes with jelly compound inside to protect the cladding fiber
  2. Corrugated steel tape laminated with plastci at both sides bonding to PE sheath
  3. The cross-section in fig8 shape
  4. Incorporates stranded steel messenger wire
  5. Messenger wire as self-supporting part, high tensile strength, easy for erection.

Application:

1. Long-distance communication, local trunk line, CATV & computer networks system

2. Laying modes: Self-support aerial installation

Specification:

Cable count Out sheath
Diameter		 Nominal weight Max.tensile strength(N) Min.Bending Radius(mm) Max.Crush Resistance(N/100mm) Temperature
(Core) (MM) (KG) Short-term Long-term Dynamic Static Short-term Long-term °C
2 3.2x6.5 54 1500 600 20D 10D 1500 600 -40~60
4 3.2x6.5 54 1500 600 20D 10D 1500 600 -40~60
6 3.2x6.5 54 1500 600 20D 10D 1500 600 -40~60
8 3.2x6.5 54 1500 600 20D 10D 1500 600 -40~60
12 3.2x6.5 54 1500 600 20D 10D 1500 600 -40~60
24 3.2x6.5 54 1500 600 20D 10D 1500 600 -40~60


Order Information:

1 Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours

2 Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)

3 Fiber count: 6-144

4 Cable length: 2000M/Drum( customized, MOQ=2000M)

5 Cable Jacket: Outer sheath Black

Figure 8 Fiber Optical Cable GYTC8Y High Tensile Strength For CATV

Figure 8 Fiber Optical Cable GYTC8Y High Tensile Strength For CATV


Figure 8 Fiber Optical Cable GYTC8Y High Tensile Strength For CATV
